M5 Connectors
M5 connector is one of the most miniature connectors in factory automation, designed for factory automation 5mm connection diameter sensors. In recent years, industrial measurement cameras, electric bicycle signal transmission, and other fields are also widely used. M5 connectors have anti-vibration, anti-rotation design, stable and reliable connection, and can be installed on equipment with space constraints. Common M5 connector PIN is 3Pin, 4pin.
Applications
-Miniature sensors
-Industrial camera
-Electric bike
-Packaging, Labeling & Logistic
-Factory automation and Fieldbus module
Quality Statement
Screws/nuts: Brass with 120µnickel plated, CNC parts.
Male contacts: Brass C3604, 3µ gold plated on nickel base, machined solid pin.
Female contacts: Phosphor bronze C5441 with 3µgold plated on nickel base, machined solid pin.
Temperature Range: Dynamic -25 to 85。C, Static: -40 to 85。C/105。C
Protection degree: IP67 in locked status, IP68 base on customer specific requirements,ROHS compliant.

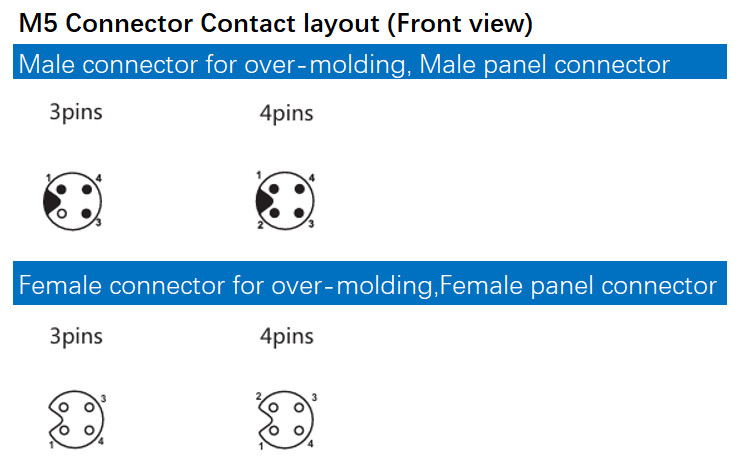

| Specification | ||
| Number of contacts | 3 | 4 |
| Coding | A | A |
| Gender: | Male/Female | |
| Connector locking system | screw, overmold | |
| Termination | solder/焊接,PCB/插板式 | |
| Wire gauge | max 0.14 mm/ max 26 AWG | |
| Operating temperature | -25°C~+85°C | |
| Mechanical operation | ＞100 mating cycles | |
| Rated voltage | 60V | |
| Rated current (40°C) | 1A | |
| Protection degree | IP67/IP68 | |
| Standard Reference | IEC 61076-2-105 | |
| Contact resistance | ＜10mΩ | |
| Insulation resistance | ≥100MΩ | |
| Materials and Plating: | ||
| Shell Material: | Brass nickel-plated | |
| Sealing Material: | Epoxy resin/Rubber | |
| Contact Material: | Phosphorus copper gold-plated/ Brass copper gold-plated |
|
| Insulator Material: | PA66 | |
| Molding Material: | TPU/PVC | |
M5 cable assembly
M5 cable assemblies are compact, circular connectors widely used in industrial automation and robotics for sensor and actuator connections. They balance small size with reliability in harsh environments
Features
- M5 cable assemblies available in 3 pin & 4 pin positions
- Male to Male, Female to Female, Double Ended, Single End to Blunt Cut
- Meets IP67/IP68 water proof requirements
- -40°C to +85°C Temperature Range
- M5 Panel Receptacle series provides three kinds of mount choice: PCB Mount, Panel Mount & Cable, and have two features of mount: Front Mount, Back Mount. Complying with IP67/IP68 protection level.
- The M5 over-molded cables provide safe and reliable communication between devices and across networks within an industrial environment. A ready-to-plug solution for versatile systems to be quickly and easily established.
M5 Cable Application
M5 circular connectors are applied in the connection between sensor and automation controlling system, actuator and automation controlling system. M5 sensor connectors and actuator connectors are classified of M5 injection molding.
Product Display
M5 Circular Cable Assemblies 90 degrees

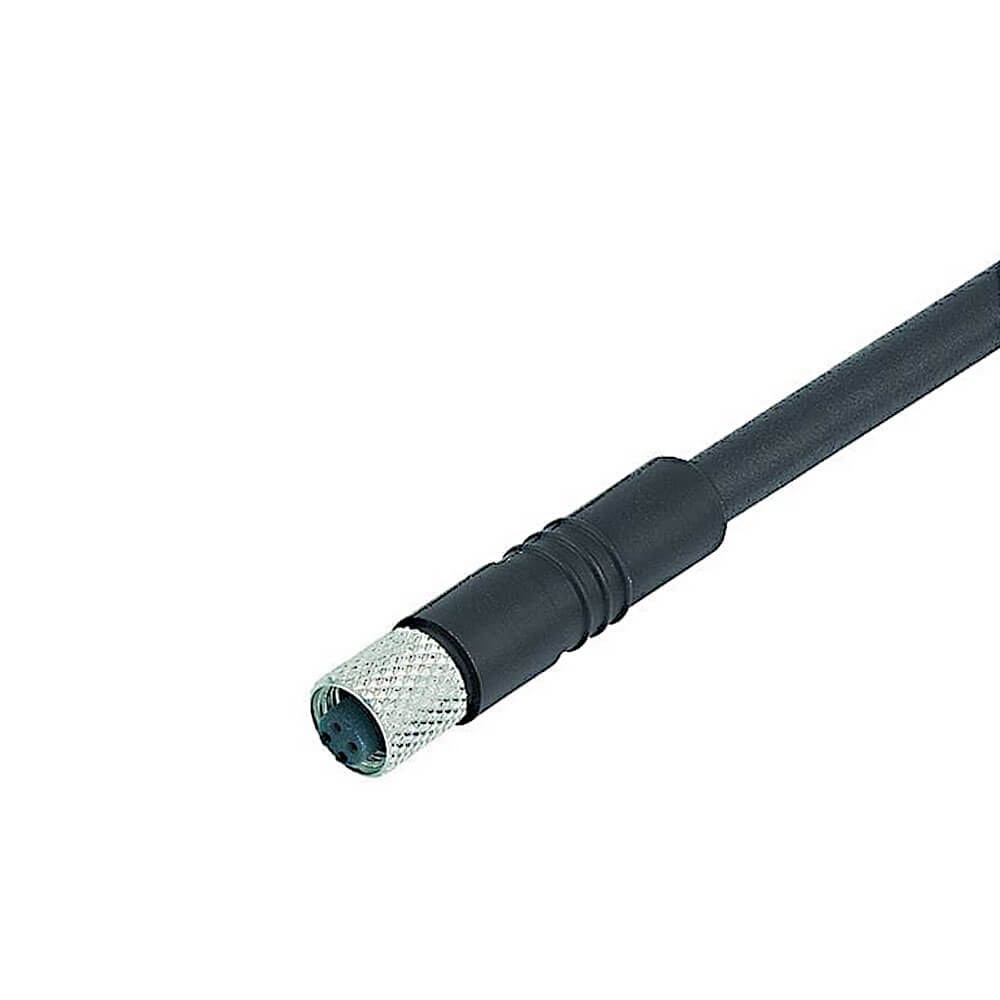

M5 Female Right Angle Overmolded Cable
M5 Female Straight Overmolded Cable
M5 Male Socket Front Fastened Wire Harness
M5 Male Straight Overmolded Cable
M5 Male to Female Straight Overmolded Cable
M5-cable assembly
