M8 Connectors
The M8 connectors, also known as the M8 electrical connectors, are designed for 8MM link diameter sensors and actuators. It's
widely used in factory automation, packaging systems, outdoor LED modules, and new energy signal control. M8 connector is
known for their anti-vibration, anti-rotation design, and compact size, making them suitable for equipment with space constraints. Furthermore, M8 connectors feature specific coding to prevent incorrect mating, ensuring proper electrical connections.
Applications
-Miniature sensors
-Industrial camera
-Electric bike
-Packaging, Labeling & Logistic
-Factory automation and Fieldbus module
Quality Statement
Screws/nuts: Brass with 120µnickel plated, CNC parts.
Male contacts: Brass C3604, 3µ gold plated on nickel base, machined solid pin.
Female contacts: Phosphor bronze C5441 with 3µgold plated on nickel base, machined solid pin.
Temperature Range: Dynamic -25 to 85。C, Static: -40 to 85。C/105。C
Protection degree: IP67 in locked status, IP68 base on customer specific requirements,ROHS compliant.
| Specification | ||||||
| Number of contacts | 3 | 4 | 4 | 5 | 6 | 8 |
| Coding | A | A | D | B | A | A |
| Connector locking system | screw, overmold | |||||
| Termination | screw clamp/锁螺丝,solder/焊接,PCB/插板式 | |||||
| Wire gauge | 0.14/0.25/0.34 mm / (26/24/22 AWG) | |||||
| Cable OD | 3~4.5mm,5~7.2mm | |||||
| Operating temperature | -25°C~+85°C | |||||
| Mechanical operation | ＞100 mating cycles | |||||
| Rated voltage | 50V AC / 60V DC | 60V | 30V | |||
| Rated current (40°C) | 3A | 4A | 3A | 1.5A | ||
| Protection degree | IP67/IP68 | |||||
| Standard Reference | IEC 61076-2-104 | |||||
| Contact resistance | ＜10mΩ | |||||
| Insulation resistance | ≥100MΩ | |||||
| Materials and Plating: | ||||||
| Shell Material: | Brass nickel-plated | |||||
| Sealing Material: | Epoxy resin/Rubber | |||||
| Contact Material: | Phosphorus copper gold-plated/Brass copper gold-plated | |||||
| Insulator Material: | PA66 | |||||
| Molding Material: | TPU/PVC | |||||
M8 Cable Assembly
M8 cable assemblies are compact circular connectors designed for industrial applications, particularly in sensor and actuator wiring where space is limited. They reliably transmit power, signals, and data in demanding environments.
M8 Connector is mainly used for connecting automation device's controlling board and outer sensors by cable. Therefore, there are M8 panel connectors and M8 cable connectors.
-M8 panel mounting connectors have pcb DIP soldering connector and wire soldering connector (one end of the wire is soldered into connector solder-cup terminal and the other end is soldered to PCB hole or pcb pad).
-M8 cable connector has molding connector and field installable connector. Low power source and signal transmission for industry automation sensors. Both M8 panel mount connector and field wireable connector have straight and right angle, shielded and un-shielded version available according to required installtion direction and electromagnetic environment. There are 3 4 5 6 8 pins, male and female M8 plug and socket receptacle available according to mated requirements.
Product Display
Custom M8 M12 M16 M23 Cable Assy
M8 Male Straight to Female Right Angle Overmolded Cable
M8-Female-RA-Overmolded-Cable-A-Code-3pin1
M8 Female Straight to USB Overmolded Cable

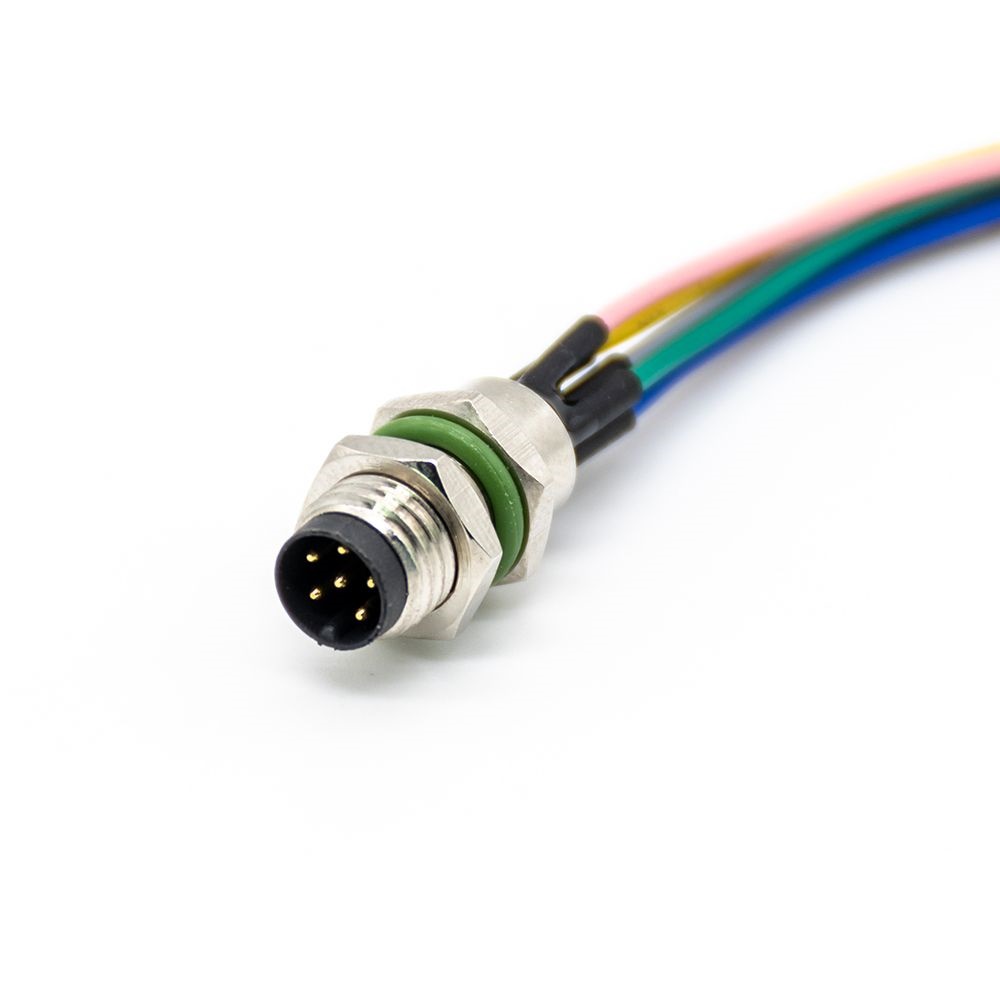

M8 Male Socket Front Fastened Wire Harness

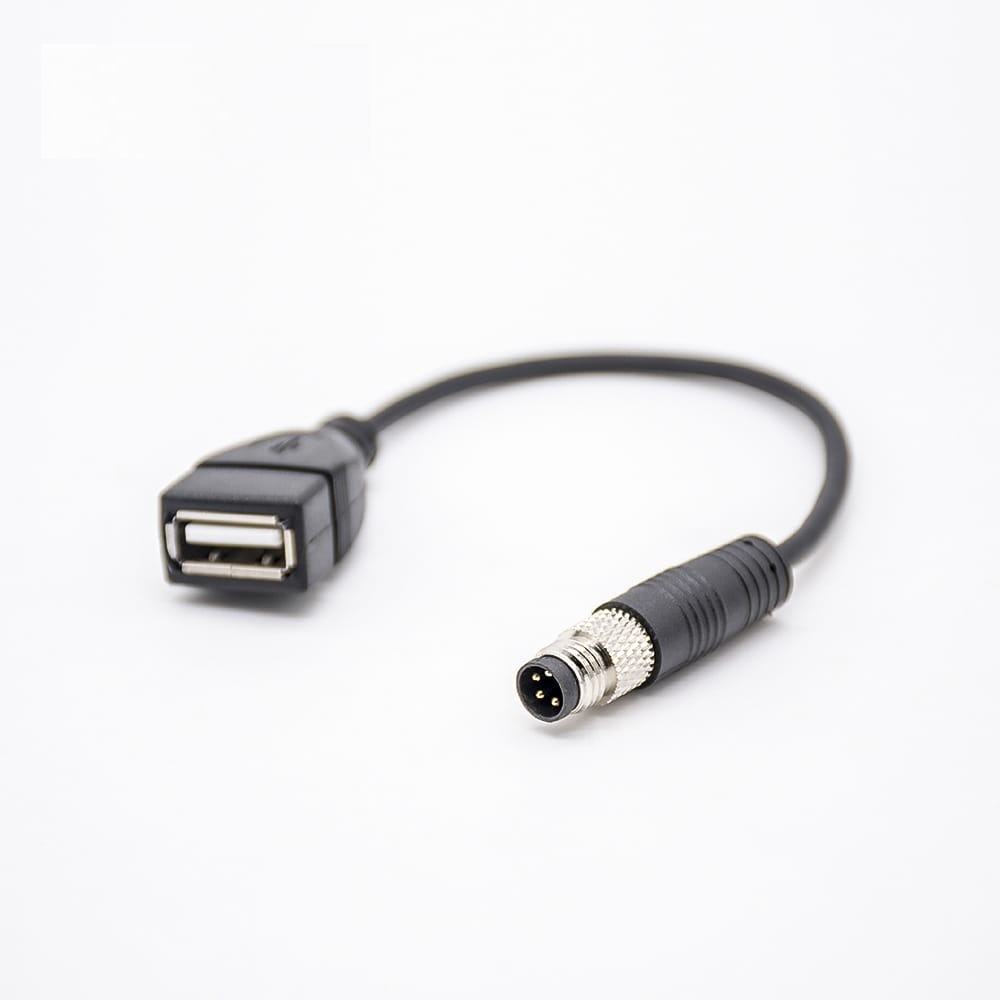

M8 Male Straight to USB Overmolded Cable
M8 Male to Female Right Angle Overmolded Cable
M8 Female Right Angle Overmolded Cable with LED
